Beyond Similarity: Anisotropic Refinement for Affine Registration

Tuesday. March 03, 2026 - 6 mins

Most classical image registration pipelines stop at similarity transforms: translation, rotation, and a single isotropic scale factor. That’s 4 degrees of freedom, and it covers a surprisingly wide range of scenarios. But real-world deformations often include anisotropic scaling or shear — think a camera with a slightly non-square sensor, or a medical image stretched along one axis — and those require a full 6-DoF affine model.

This post works out a simple extension: keep Fourier–Mellin (FM) for the similarity part, which is fast and well-understood, and add a lightweight refinement step that estimates the remaining anisotropic stretch from the residual in log-polar space.

The linear component

Translation can be handled separately via phase correlation, so we focus on the linear component $A$ of the affine map between a reference image $I_{\mathrm{ref}}$ and a moving image $I_{\mathrm{mov}}$:

$x \mapsto A x, \qquad A \in \mathrm{GL}(2).$

Polar decomposition

Any invertible linear map factors uniquely into a rotation followed by a symmetric stretch. Writing this polar decomposition:

$A = R\,P, \qquad R \in \mathrm{SO}(2),\quad P \succ 0$

where $R$ is a rotation and $P$ is a symmetric positive-definite stretch matrix. The stretch itself has an eigen-decomposition:

$P = Q\,\mathrm{diag}(\lambda_1,\lambda_2)\,Q^\top, \qquad \lambda_1 \ge \lambda_2 > 0.$

The degree of anisotropy is captured by the condition number $\kappa = \lambda_1 / \lambda_2$. When $\kappa = 1$ the stretch is isotropic; larger $\kappa$ means more directional distortion.

Isotropic–anisotropic parameterization

To separate what FM can already handle (isotropic scale) from what it cannot, we factor the stretch as:

$P = \lambda_{\mathrm{iso}}\,S_{\mathrm{ani}}(\delta,\phi)$

where the anisotropic component is:

$S_{\mathrm{ani}}(\delta,\phi) = R(\phi)\,\mathrm{diag}(e^\delta, e^{-\delta})\,R(-\phi).$

Matching eigenvalues gives $\lambda_1 = \lambda_{\mathrm{iso}} e^\delta$ and $\lambda_2 = \lambda_{\mathrm{iso}} e^{-\delta}$, from which:

$\lambda_{\mathrm{iso}} = \sqrt{\lambda_1 \lambda_2}, \qquad \delta = \tfrac{1}{2}\log\frac{\lambda_1}{\lambda_2}.$

Isotropic stretch is the special case $\delta = 0$. The parameter $\delta$ measures the log-ratio of the two scales, and $\phi$ gives the principal axis direction.

Baseline: Fourier–Mellin

The classical FM pipeline estimates similarity transforms in three steps:

Compute the Fourier magnitude spectrum (this removes translation, since the spectrum is shift-invariant).
Map to log-polar coordinates (this converts rotation and isotropic scale to translations).
Use phase correlation to recover both rotation and isotropic scale.

After applying the similarity correction we obtain $I_{\mathrm{cur}}$, which may still contain anisotropic stretch — the part FM cannot see.

Log-polar view of anisotropy

Here is the key geometric insight. Let $u(\alpha) = (\cos\alpha, \sin\alpha)$ be the unit vector at angle $\alpha$. The anisotropic stretch scales this direction by:

$g(\alpha) = \|S_{\mathrm{ani}}(\delta,\phi)\,u(\alpha)\|$

which works out to:

$g^2(\alpha) = e^{2\delta}\cos^2(\alpha-\phi) + e^{-2\delta}\sin^2(\alpha-\phi).$

In log-polar coordinates, a radial scale multiplier becomes an additive shift: $\rho = \log r \mapsto \rho + \log g$. So the anisotropic distortion produces an angle-dependent radial shift:

$s(\alpha) = \log g(\alpha).$

Instead of one global shift (what FM measures), we now have a shift curve indexed by angle — and that curve contains the anisotropy signal.

Small-anisotropy approximation

For small $\lvert \delta \rvert$, using $e^{\pm 2\delta} \approx 1 \pm 2\delta$, the shift curve simplifies to:

$s(\alpha) \approx \delta \cos(2(\alpha - \phi)).$

Anisotropy appears as a second harmonic sinusoid in the angular shift profile. This is a clean structure: it has only two free parameters ($\delta$ and $\phi$) and can be recovered by a simple harmonic fit.

Estimating the shift curve

Working in the log-polar Fourier magnitude $M(\alpha, \rho) = \mathcal{L}(\lvert \mathcal{F}(I)\rvert)$, the anisotropic distortion produces:

$M_{\mathrm{cur}}(\alpha, \rho) \approx M_{\mathrm{ref}}(\alpha, \rho - s(\alpha)).$

For each angular bin we estimate the radial shift using 1-D phase correlation, yielding a shift sample per bin:

$\hat{\mathbf{s}} = [\hat{s}_0, \ldots, \hat{s}_{H_\alpha - 1}].$

Recovering anisotropy

We fit the second harmonic model to the estimated shift samples:

$\hat{s}(\alpha) = a_0 + a_c \cos(2\alpha) + a_s \sin(2\alpha).$

The amplitude and phase of the fitted sinusoid give the anisotropy parameters directly:

$A = \sqrt{a_c^2 + a_s^2}, \qquad \phi = \tfrac{1}{2}\operatorname{atan2}(a_s, a_c).$

The anisotropy magnitude then follows as:

$\delta \approx A \log b$

where $b$ is the log-polar radial base. The whole recovery is a linear least-squares problem — cheap and stable.

The full algorithm alternates between similarity removal and anisotropy estimation:

FM step — estimate isotropic scale and rotation via log-polar phase correlation.
Anisotropy estimation — measure per-angle radial shifts and fit the harmonic model.
Resolve discrete ambiguities — evaluate candidates $(\pm\delta, \phi)$ and $(\pm\delta, \phi + \pi/2)$ and keep the best alignment score.
Accumulate and iterate.

Only a few outer iterations are needed — the similarity step accounts for the bulk of the deformation, and the anisotropy refinement converges quickly in the residual.

Experiment

We evaluate on 5,000 affNIST image pairs with known ground-truth affine parameters.

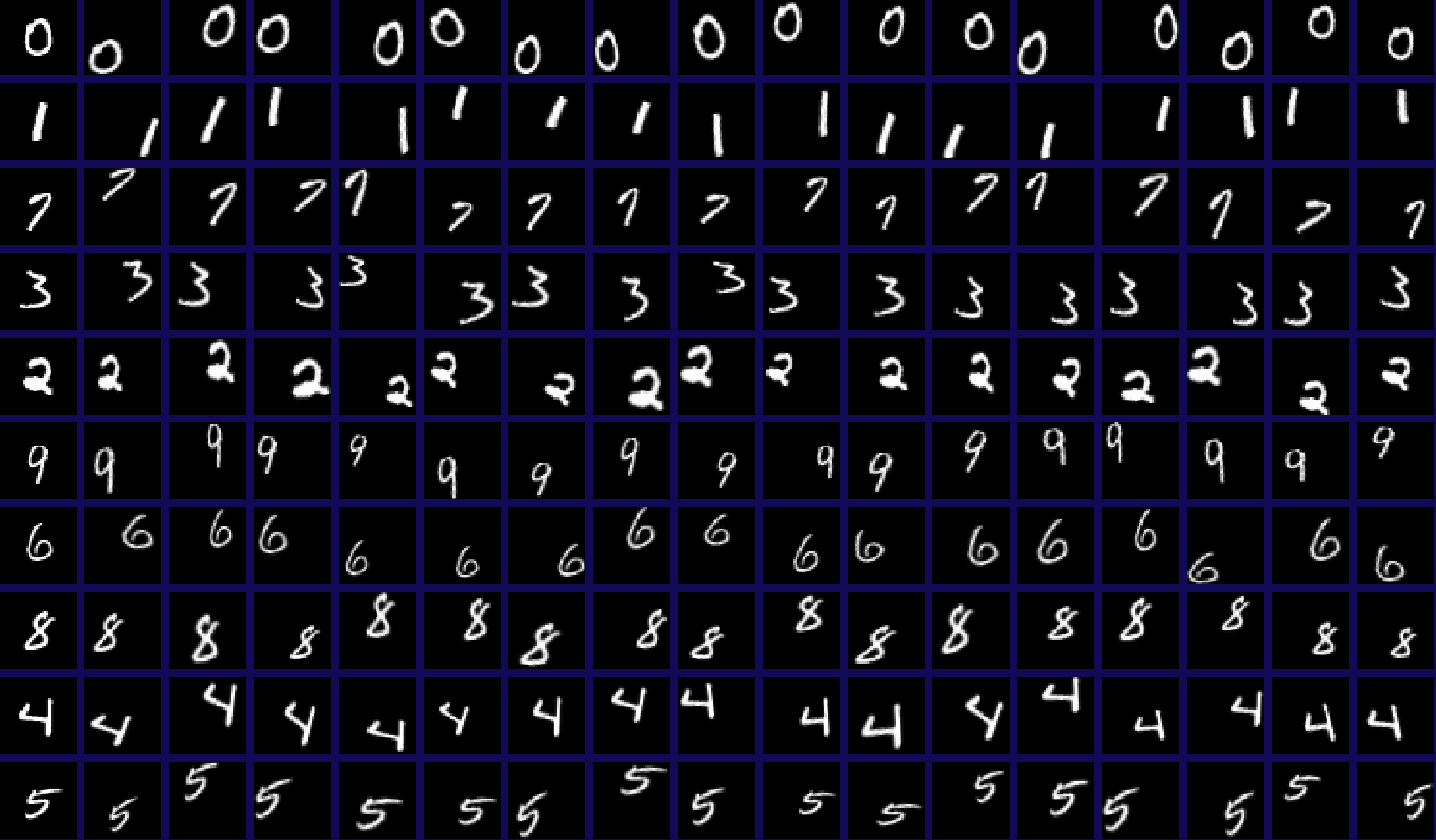

affNIST dataset

The table below compares recovered singular values with and without anisotropic refinement (2 steps):

Metric	Baseline (FM)	Refined ($\delta, \phi$)	Change
MAE($\lambda_1$)	0.094	0.077	−18.1%
MAE($\lambda_2$)	0.092	0.063	−31.5%
RMSE($\lambda_1$)	0.121	0.111	−8.3%
RMSE($\lambda_2$)	0.117	0.090	−23.1%

The refinement consistently improves recovery of both singular values, with the largest gains for the smaller eigenvalue $\lambda_2$ — the one that FM underestimates most.

The anisotropy estimate itself remains the hardest part. The recovered $\delta$ reaches only $\sim 0.3$ correlation with ground truth, and systematically underestimates deformation magnitude:

$\mathbb{E}[\hat{\delta}] = 0.04, \qquad \mathbb{E}[\delta_{\mathrm{gt}}] = 0.09.$

The refinement improves the effect of anisotropy (better recovered scales) even when it underestimates its magnitude.

Parameter distributions

Distribution comparison

The isotropic scale estimates show mild quantization — a consequence of discretizing the log-radius axis in FM. Each bin corresponds to a fixed multiplicative scale step, which produces slight clustering in the recovered scale distribution.

The anisotropic estimates show a strong bias toward smaller values. Because the harmonic fit is noisy and phase correlation is only approximate at the per-bin level, the estimated $\delta$ is systematically pulled toward zero. This causes the recovered singular values to cluster near the isotropic scale rather than spanning their true range.

Final thoughts

Fourier–Mellin registration handles similarity well, and this experiment shows it can be nudged toward affine alignment with a modest extra step. The anisotropy refinement is cheap (a per-angle 1-D phase correlation plus a harmonic fit), interpretable (second harmonic → two parameters), and consistently improves the recovered scales even in its current noisy form.

The method works best as a fast initialization for full affine registration, or as a cheap refinement layer on top of similarity alignment when full affine optimization is overkill. More broadly, it highlights how much mileage careful geometric modeling can extract from classical frequency-domain tools.
